Practical video: Measurement of small turned parts

| Marketing Team

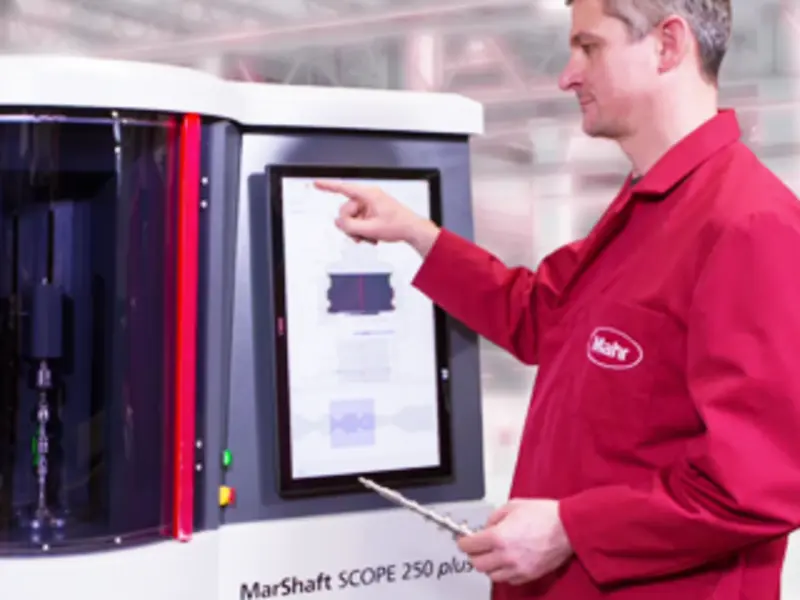

With the flexible and compact MarShaft SCOPE 250 plus shaft measuring machine, Mahr offers the right measuring solution for the fast, precise and fully automatic measurement of rotationally symmetrical workpieces in production. This practical video shows the measurement and quality assurance of smaller workpieces.

The MarShaft SCOPE 250 plus has a highly accurate axis of rotation axis (C) and a vertical measuring axis (Z) with a measuring range of 250 mm. The heart is the modern, high-resolution CMOS matrix camera (live image) with an image field of 1088 x 2048 pixels. The very high image acquisition of more than 120 images per second allows for shortest measurement times. Zoom functions allow for measurement of the smallest details which are difficult or impossible to test using conventional measuring methods.

Features at a glance:

  • New, high-resolution CMOS matrix camera with 40 mm live image field enables fastest scanning with over 120 images per second Scanning mit über 120 Bildern pro Sekunde
  • High accuracy for diameter and length measurement
  • Extremely short measuring times due to high measuring speeds of up to 200 mm / s
  • Through the use of the Mahr software platform MarWin, all the decades of experience in the areas of length, shape, position and contour measurement are available
  • Very good entry price in the segment of the small optical shaft measuring machine

The video shows:

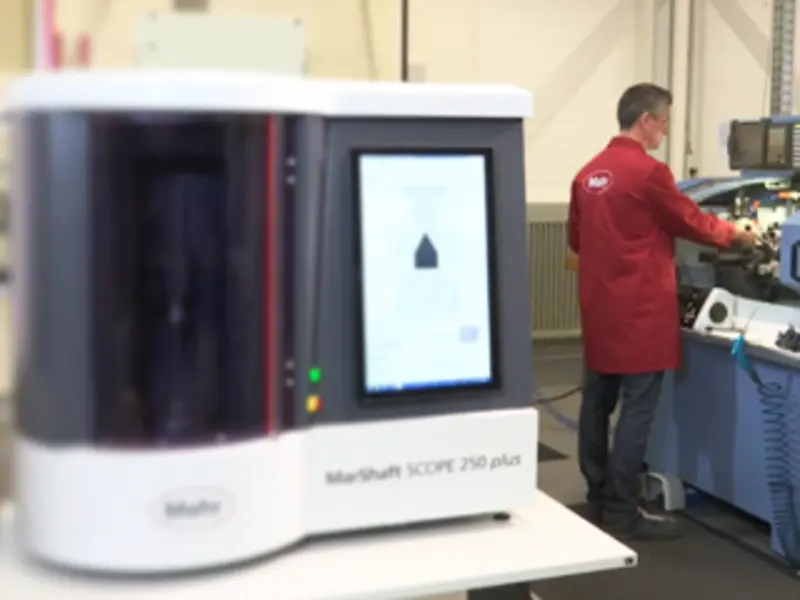

  • Use close to production with easy commissioning

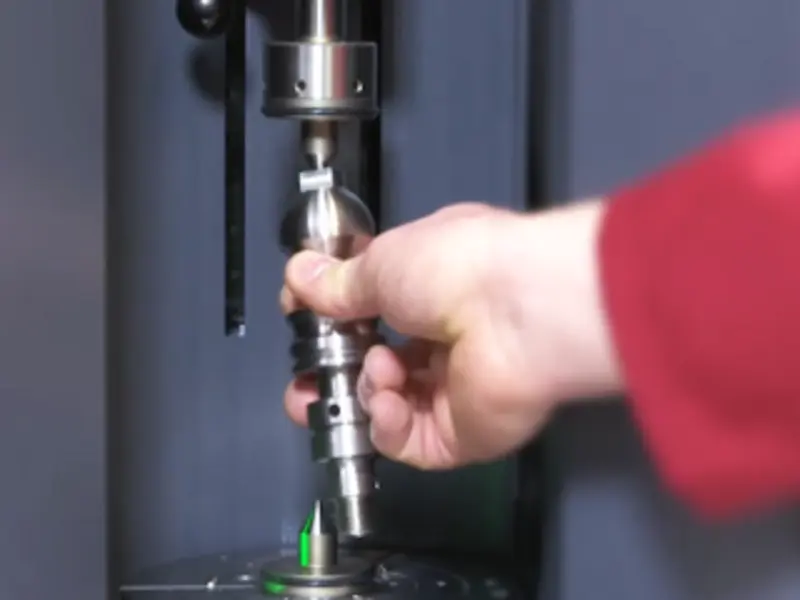

  • Scanning the workpiece in just 5 seconds using a live image camera

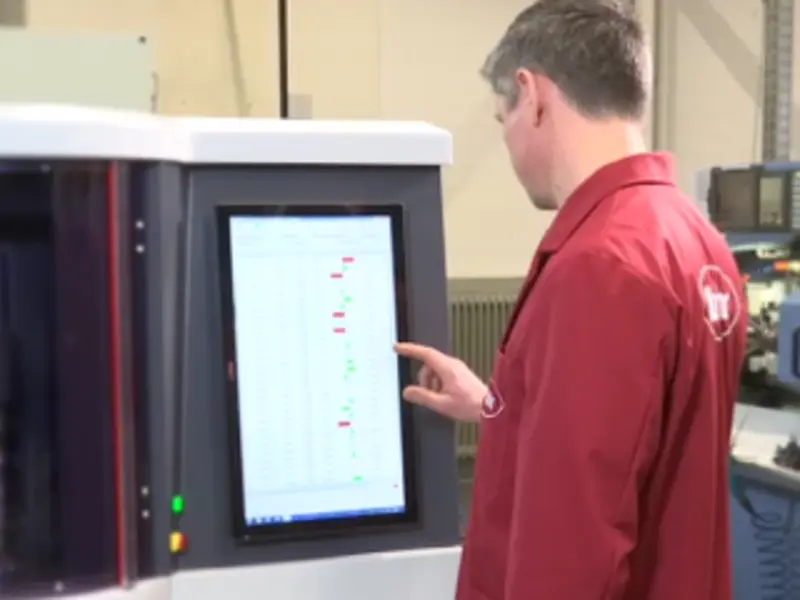

  • Easy operation on the touchscreen monitor

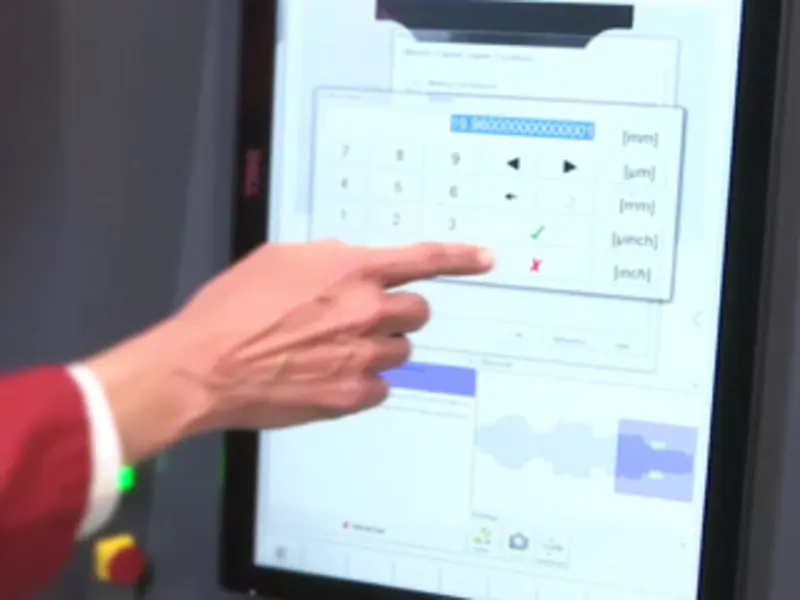

  • Easiest programming via macros with the new EasyShaft operating software


More information on the MarShaft SCOPE 250 plus measuring system can be found here...
